1/4″ x 1/4″ Keystock 1/4″ x 1/4″ Keystock is used to align shaped punches that utilize a 1/4″ wide x 1/8″ deep keyway. Keystock is in stock. Additional Information Part #: CPDK0001 Dimensions: Length: 1.000″ Width: 0.250″ Height: 0.250″ Proudly Made in the USA
CN20 Punch Nut Punch Nut holds F20 Punches and is in stock. Additional Information Part #: CN20 Dimensions: Hexagon Size: 2.250″ Inside Diameter: 1.228″ Height: 1.500″ Thread Size: 1-9/16″-12 Proudly Made in the USA
F20 Corner Radius Punch – No Keyway Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59, and F62 Corner Radius Dies. *Punch and Die should be the same size. Additional Information Dimensions: Head Diameter: 1.375″ Body Diameter: 1.218″ Overall Length:…
F20 Corner Radius Punch with 1/4″ x 1/8″ Cross Keyway Punches are supplied with a 1/4″ wide x 1/8″ deep cross keyway. Use 1/4″ x 1/4″ Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Corner Radius…
F20 Hexagon Punch – No Keyway Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59 , and F62 Hexagon Dies. Additional Information Dimensions: Head Diameter: 1.375″ Body Diameter: 1.218″ Overall Length: 2.375″ Punch & Die Clearance: Use chart above to…
F20 Hexagon Punch with 1/4″ x 1/8″ Cross Keyway Punches are supplied with a 1/4″ wide x 1/8″ deep cross keyway. Use 1/4″ x 1/4″ Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Hexagon Dies. Additional…
F20 Oblong Punch – No Keyway Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59, and F62 Oblong Dies. Additional Information Dimensions: Head Diameter: 1.375″ Body Diameter: 1.218″ Overall Length: 2.375″ Punch & Die Clearance: Use chart above to determine…
F20 Oblong Punch with 1/4″ x 1/8″ Cross Keyway Punches are supplied with a 1/4″ wide x 1/8″ deep cross keyway. Use 1/4″ x 1/4″ Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Oblong Dies. Additional…
F20 Round Punch All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59, and F62 Round Dies. Additional Information Dimensions: Head Diameter: 1.375″ Body Diameter: 1.218″ Overall Length: 2.375″ Punch & Die Clearance: Use chart above to determine recommended die clearance. The punch and die should NOT…
F20 Square Punch – No Keyway Punches are supplied with no keyway. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F55, F59, and F62 Square Dies. *For carriage bolt and square tube applications we recommend using a square punch 1/32″ larger than the size of carriage bolt…
F20 Square Punch with 1/4″ x 1/8″ Single Keyway Punches are supplied with a 1/4″ wide x 1/8″ deep single keyway. Use 1/4″ x 1/4″ Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F55 and F59 Square Dies. *For…

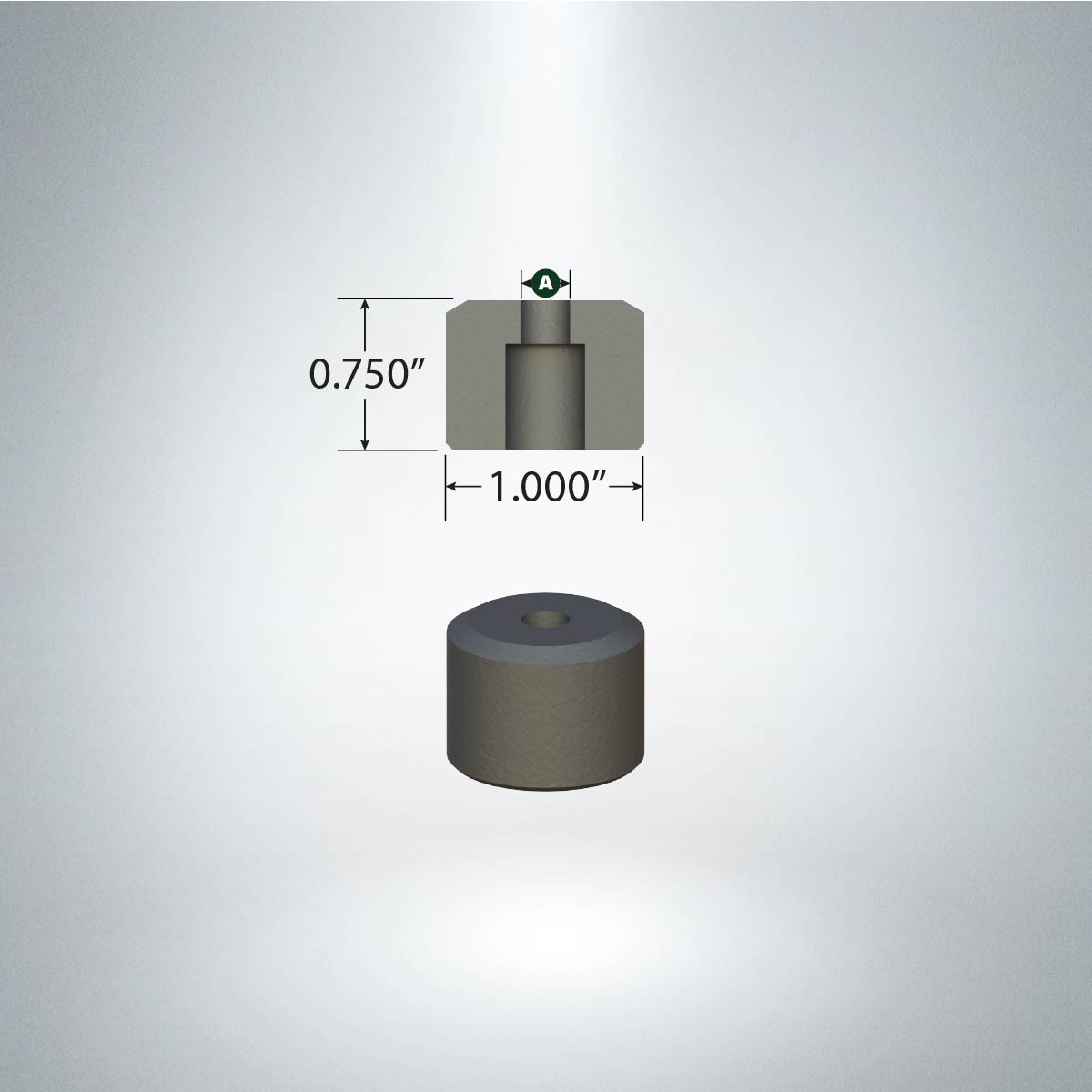

F41 Round Die All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F20 Round Punches. Additional Information Dimensions:Outside Diameter: 1.000″Height: 0.750″ Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should NOT be the same size. Cross Reference: F41 Die CST-402, GFM-72,…
F59 Corner Radius Die Dies are supplied with three locator notches. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F16 and F20 Corner Radius Punches. *Punch and Die should be the same size. Additional Information Dimensions: Outside Diameter: 2.000″ Height: 1.125″ Punch & Die Clearance:Corner Radius Tooling…
F59 Hexagon Die Dies are supplied with two locator notches. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F16 and F20 Hexagon Punches. Additional Information Dimensions: Outside Diameter: 2.000″ Height: 1.000″ Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die should…
F59 Oblong Die Dies are supplied with two locator notches. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F16, F20, and SR20K Oblong Punches. Additional Information Dimensions: Outside Diameter: 2.000″ Height: 1.000″ Punch & Die Clearance:Use chart above to determine recommended die clearance. The punch and die…
F59 Oblong Offset Die Dies are supplied with one locator notch. All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F16 , F20 and SR20K Oblong Punches. *Do not use an Offset Die if you CANNOT adjust your die holder. Additional Information Dimensions: Outside Diameter: 2.000″ Height: 1.000″…
