F20/F59 Oblong Punch & Die Set – 6 Pack

Punch & Die Sets are a great way to stock your punch and die inventory. This Set is in stock and includes 6 F20 Oblong Punches, 6 F59 Oblong Dies, Half Pint of Punch-Easy®, and Toolbox.

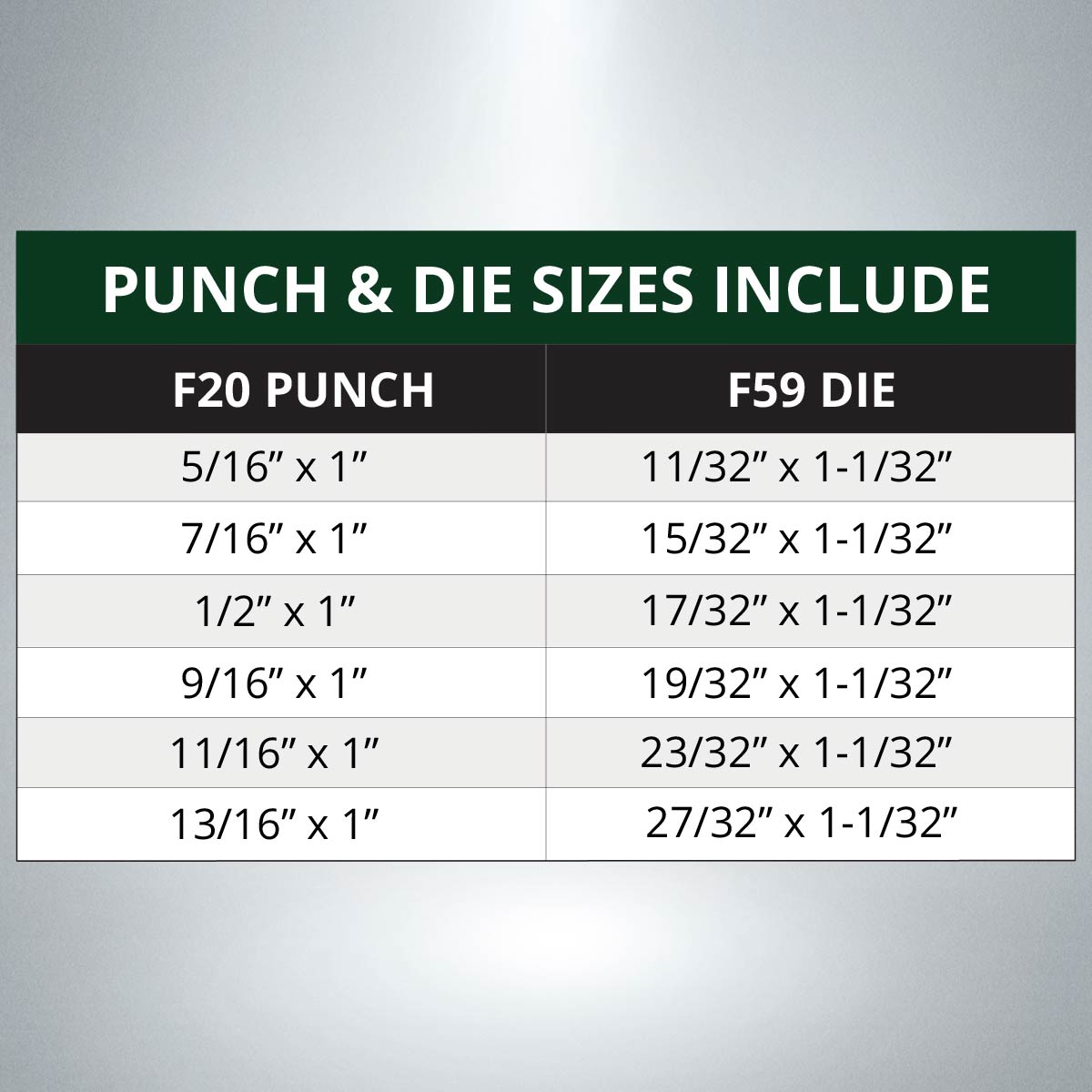

Punch & Die Sizes Include:

F20 Punch	5/16″ x 1″, 7/16″ x 1″, 1/2″ x 1″, 9/16″ x 1″, 11/16″ x 1″, 13/16″ x 1″
F59 Die	11/32″ x 1-1/32″, 15/32″ x 1-1/32″, 17/32″ x 1-1/32″, 19/32″ x 1-1/32″, 23/32″ x 1-1/32″, 27/32″ x 1-1/32″

F20 Punch Dimensions:
Head Diameter: 1.375″
Body Diameter: 1.218″
Overall Length: 2.375″

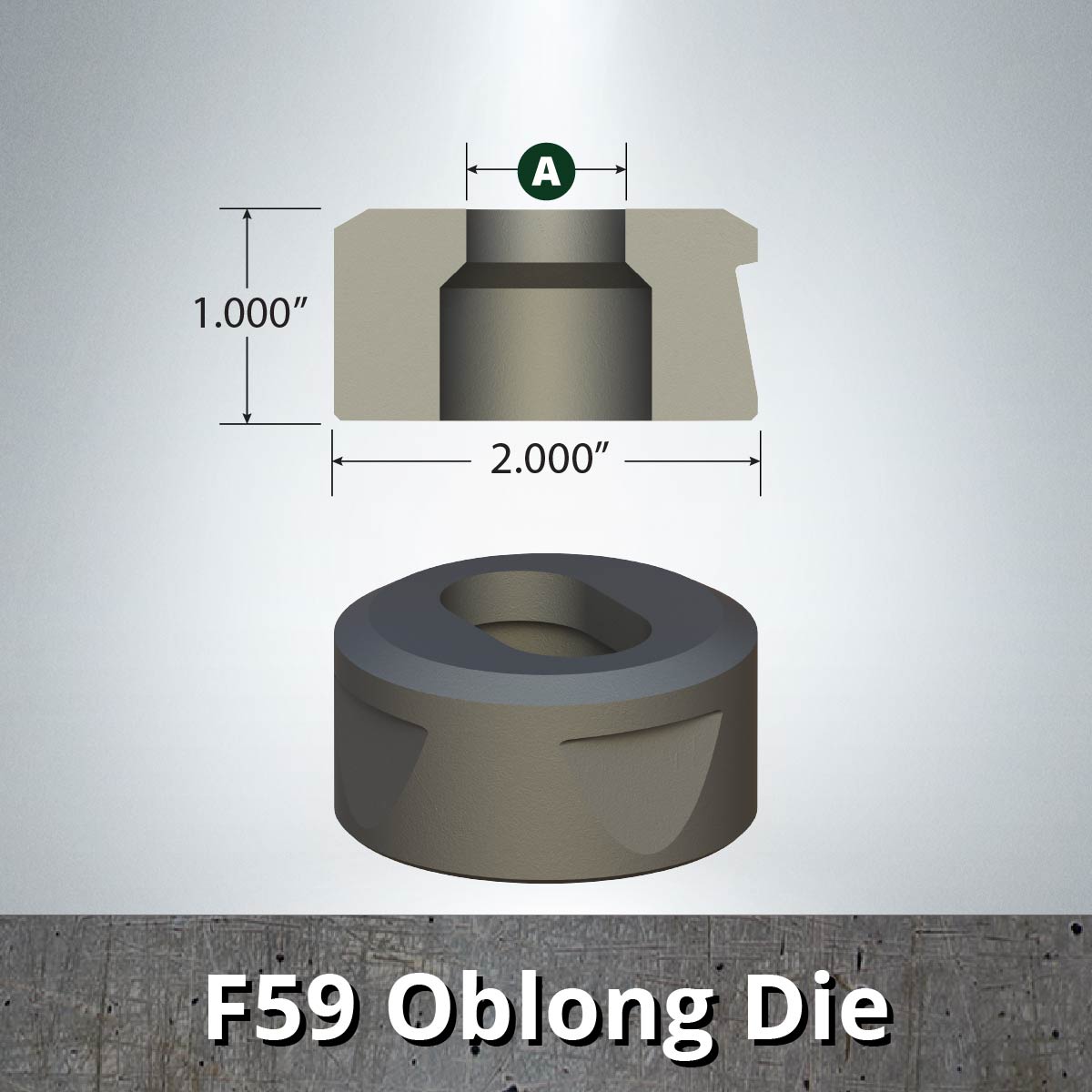

F59 Die Dimensions:
Outside Diameter: 2.000″
Height: 1.000″

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.

Note:
Material thickness should not exceed punch size.

Cross Reference:

F20 Punch	AP-121, CST-221, GFM-40, PIR-EA, SCOT-40
F59 Die	AP-317, CST-417, GFM-82, PIR-JC, SCOT-82

Proudly Made in the USA

Additional information

Keyway	No Keyway, 4mm Single Keyway, 6mm Cross Keyway, 1/4" x 1/8" Cross Keyway, 4mm x 2.5mm Single Keyway
