F20 GXL97 Round Punch Supply
Original price was: $42.00.$16.80Current price is: $16.80.
Description
F20 GXL97 Round Punch
All sizes listed are in stock. Contact us for custom sizes not listed. Commonly paired with F59 Round Dies.
*F20 GXL97 extended length punches are designed to punch angle iron leg up on Geka™ ironworkers. A special stripper is required to use these extended length punches.
Dimensions:
Head Diameter: 1.375″
Body Diameter: 1.218″
Overall Length: 3.750″

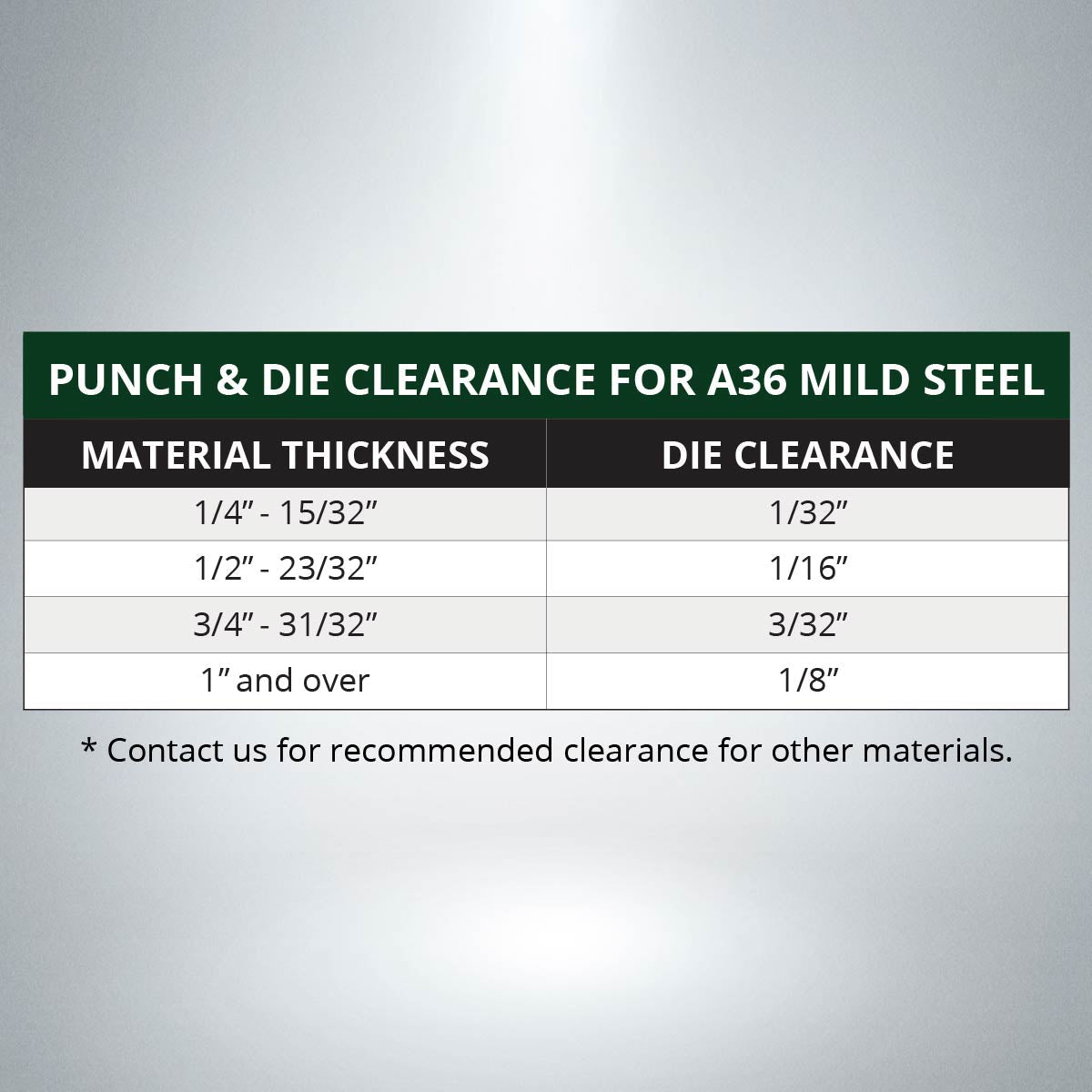

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed punch size.
Proudly Made in the USA
Additional information
| Size | 1/4", 9/32", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1-1/16" |
|---|
