F20 Oblong Punch with 4mm Single Keyway Discount
Original price was: $64.00.$19.20Current price is: $19.20.
Description
F20 Oblong Punch with 4mm Single Keyway
Punches are supplied with a 4mm wide x 4mm deep single keyway. Use 4mm x 6mm Keystock to align punches in the machine. All sizes listed ship within 24 hours. Contact us for custom sizes not listed. Commonly paired with F59 Oblong Dies.
Dimensions:
Head Diameter: 1.375″
Body Diameter: 1.218″
Overall Length: 2.375″

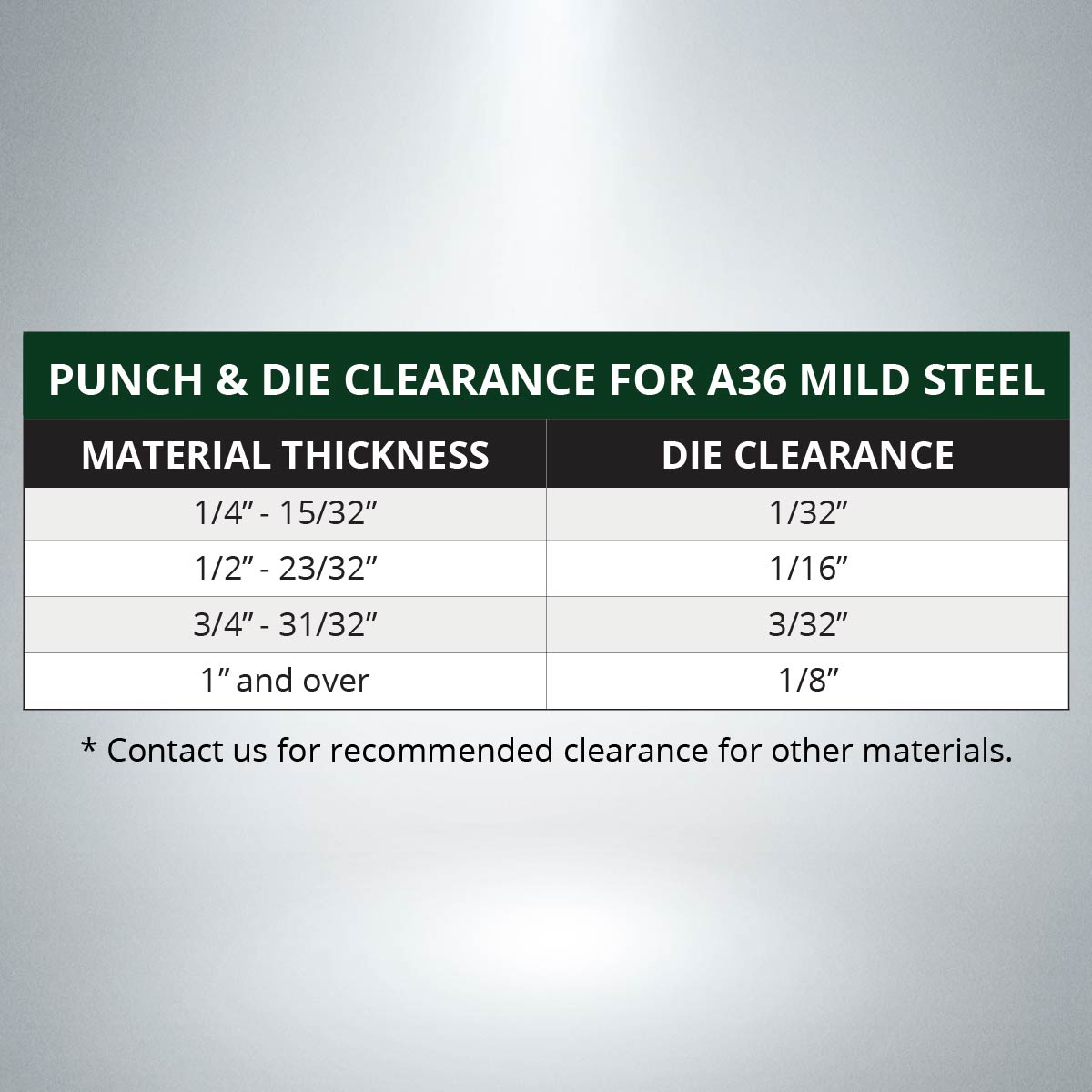

Punch & Die Clearance:
Use chart above to determine recommended die clearance. The punch and die should NOT be the same size.
Note:
Material thickness should not exceed the smallest punch size.
Cross Reference:
| F20 Punch | AP-121, CST-221, GFM-40, PIR-EA, SCOT-40 |
Proudly Made in the USA
